- Equipped of capsule one type of fixed type and float free type
- Download data for 48 hours in Data Acquisition Unit
- Recording up to 48 hours data in both capsules
- Image recording of up to 4 Channels Radar / ECDIS
- Recording of all Serial, Analog and Digital datas
- Audio recording up to 10 ch of Bridge Audio
- Audio recording up to 2 ch of VHF Audio
- Live Player software allows for real-time data monitoring as well as data playback with a PC at later time
Type Approval Requirements
SOLAS 74 Reg. V/18, SOLAS 74 Reg. X/3, IMO Res. MSC.36(63)-(1994 HSC Code) 13, IMO Res. MSC.97(73)-(2000 HSC Code) 13
Performance Requirements
SOLAS 74 Reg. V/20, IMO Res. A.694(17), IMO Res. MSC.36(63)-(1994 HSC Code) 13, IMO Res. MSC.97(73)-(2000 HSC Code) 13, IMO Res. MSC.191(79), IMO Res. MSC.302(87), IMO Res. MSC.333(90)
Standarts
EN 60945:2002 incl. IEC 60945 Corr. 1:2008, EN 61162-1:2016 EN 61162-2:1998 , EN 61162-3:2008 +A1:2010+A2:2014 EN IEC 61162-450:2018, EN 61996-1:2013+A1:2021 EN IEC 62288:2022, EN IEC 62923-1:2018, EN IEC 62923-1:2018

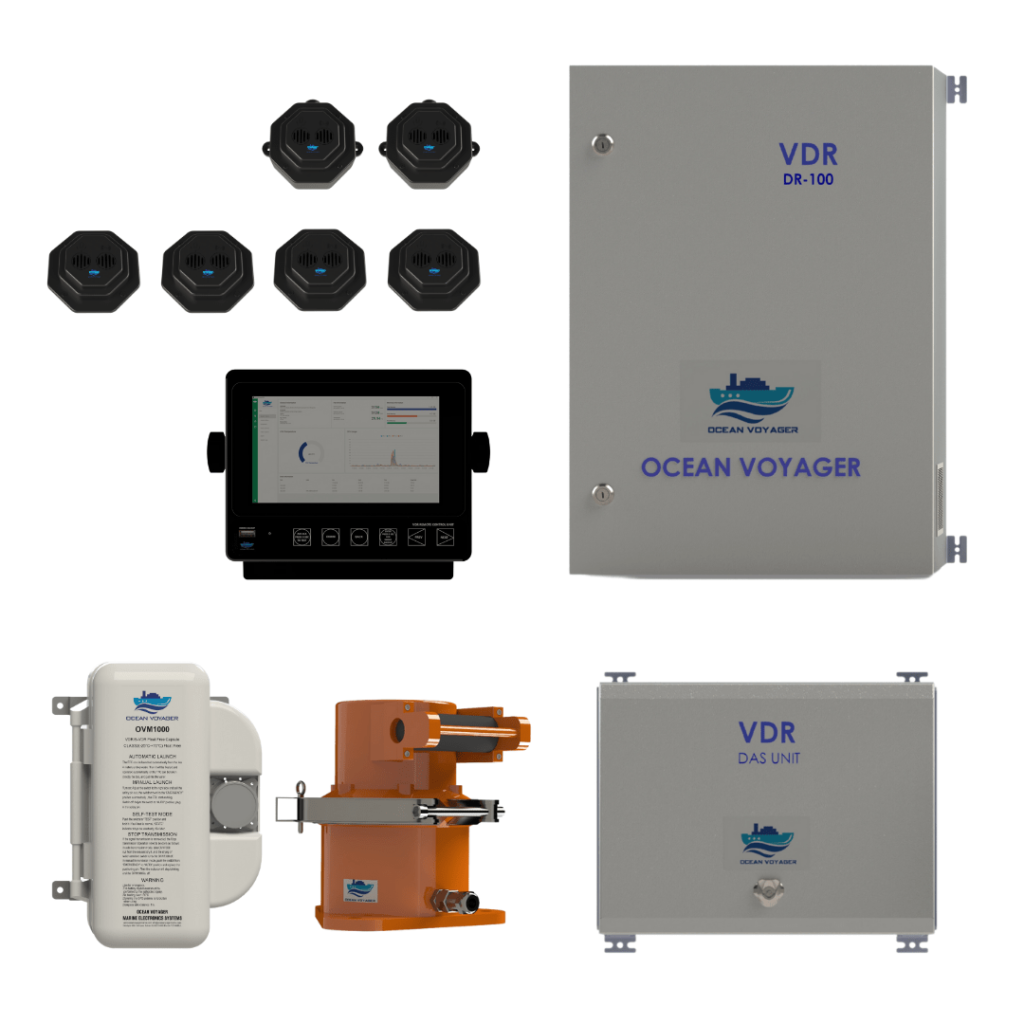

| Name | Voyage Data Recorder |
| Recording time | DAU – Up to 48 Hours |
| LRU – Up to 30 Days | |
| FPC – Up to 48 Hours | |
| FFC – Up to 48 Hours | |
| Serila Inputs | 16 Channel |
| Digital Inputs | 64 Caennel |
| Analog Inputs | 8 Channle |
| Video Inputs | Up to 4 Channels /VGA or UDP |
| LAN | 61162-450 |
| Microphone Audio Input | 10 Channel |
| VHF Audio Input | 2 Channel |

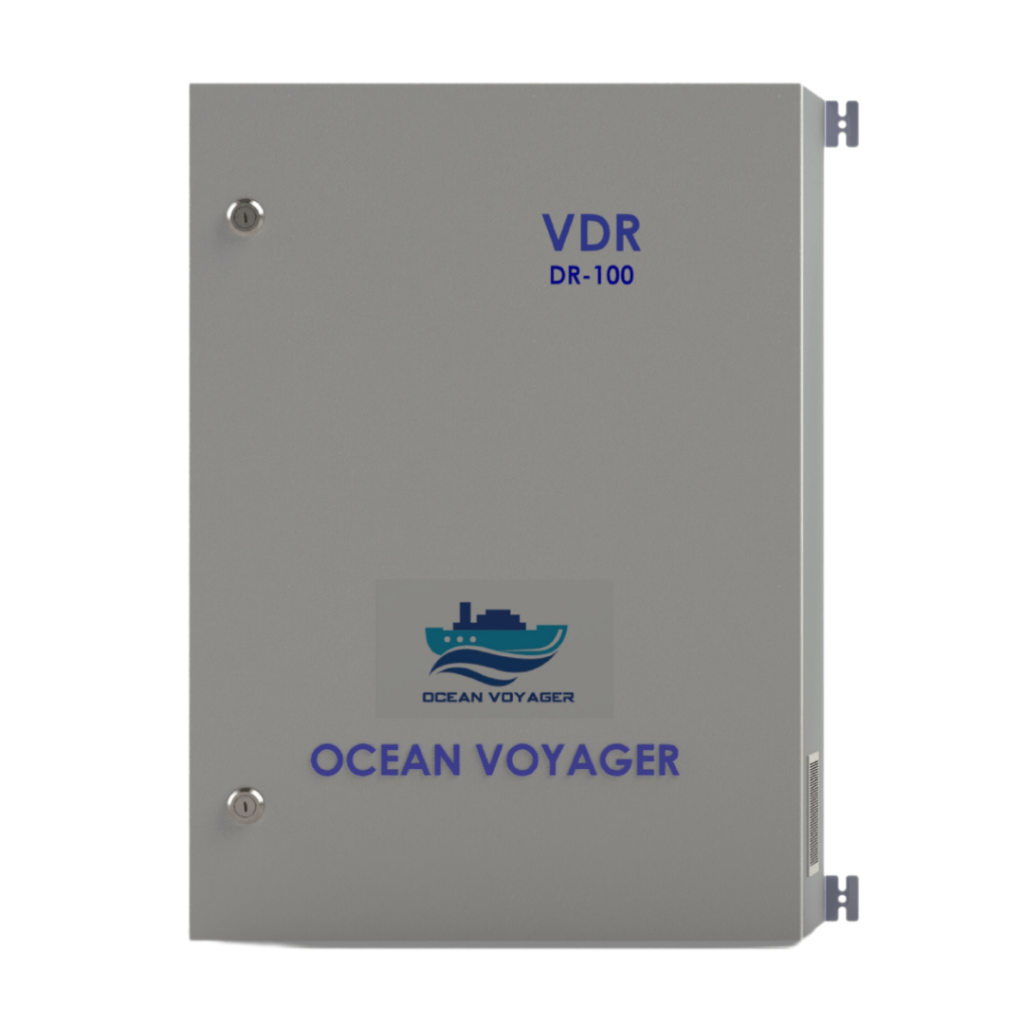

| Data Asquisition Unit | AC-100-240V, 10A, 50/60 Hz |

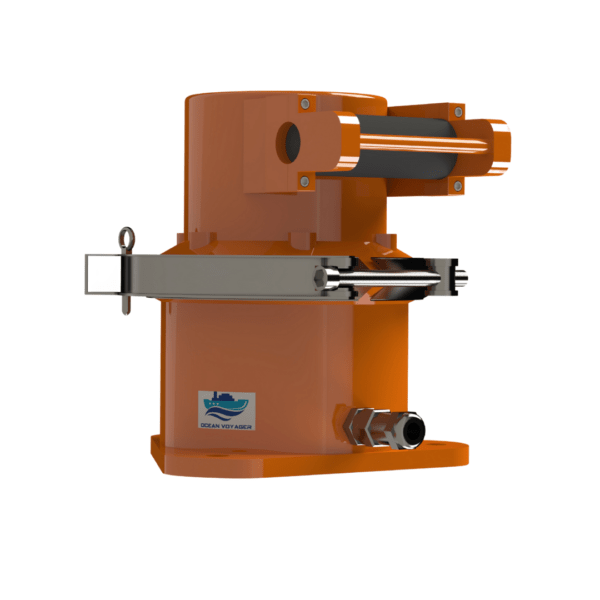

| Fixed Protective Capsule | DC 24V, Supply From DAU |

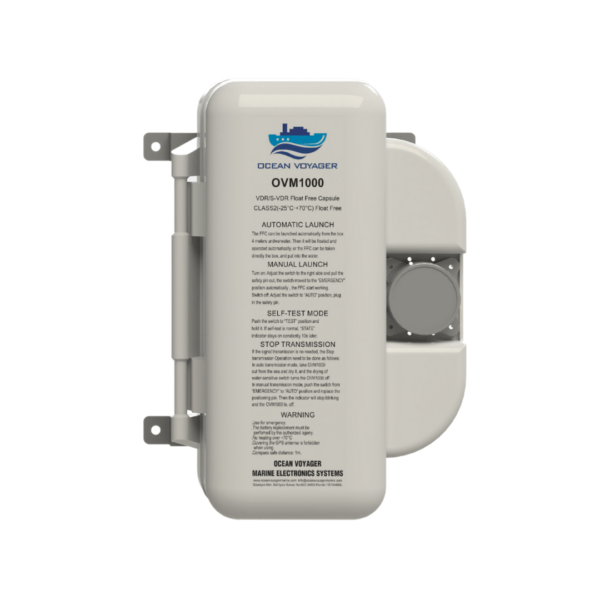

| Float Free Capsule | DC 24V, Supply From DAU |

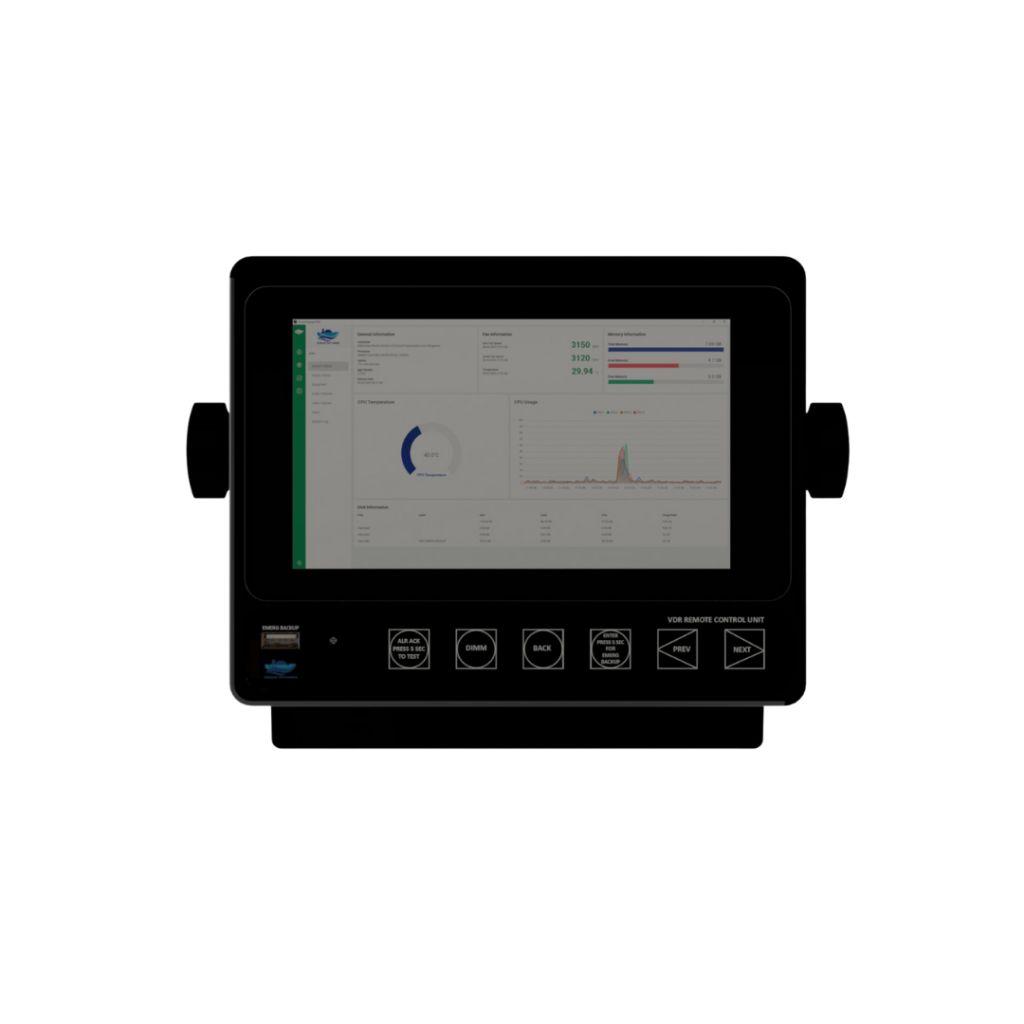

| Remote Alarm Panel / Control Unit | DC 24V, Supply From DAU |

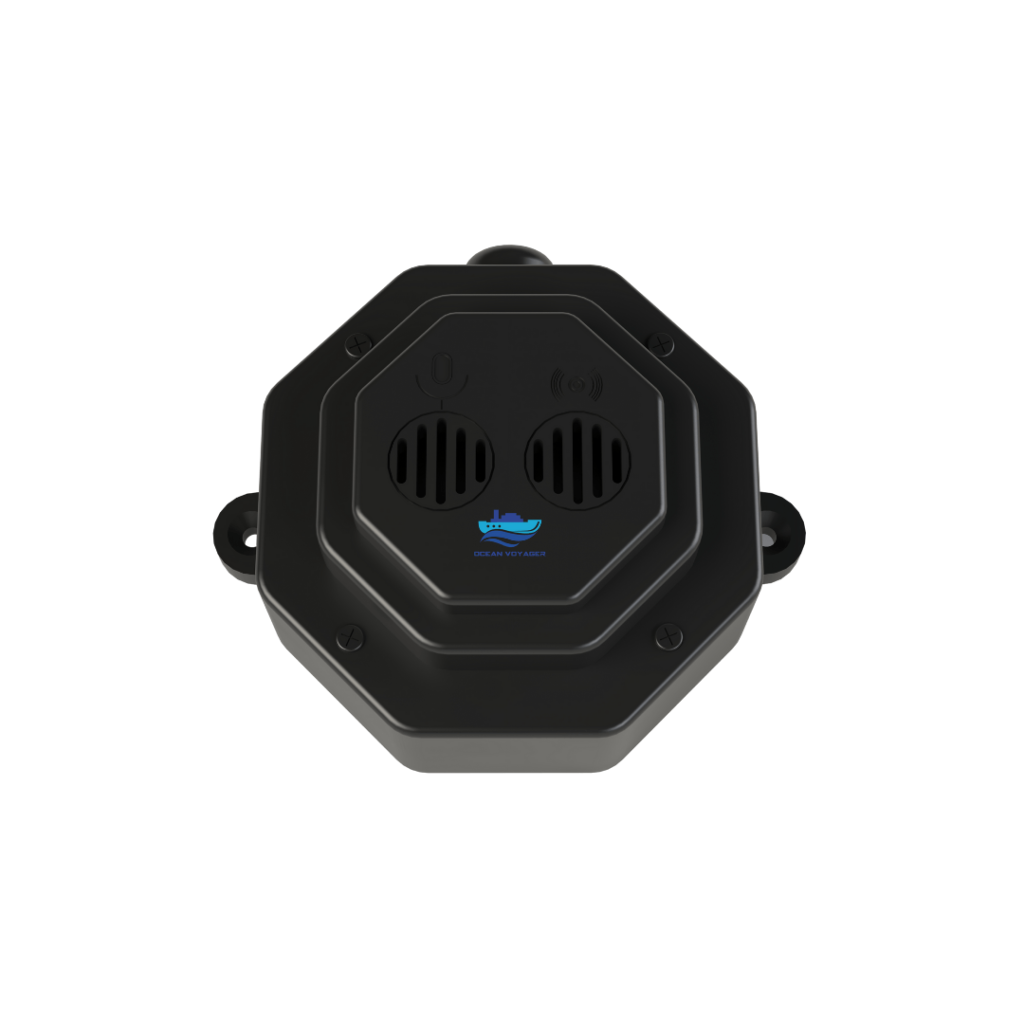

| Microphone Units | DC 24V, Supply From DAU |
| Ship’s Emergency Supply | DC 21.6 – 33.6V, 13.5A, 50/60Hz |

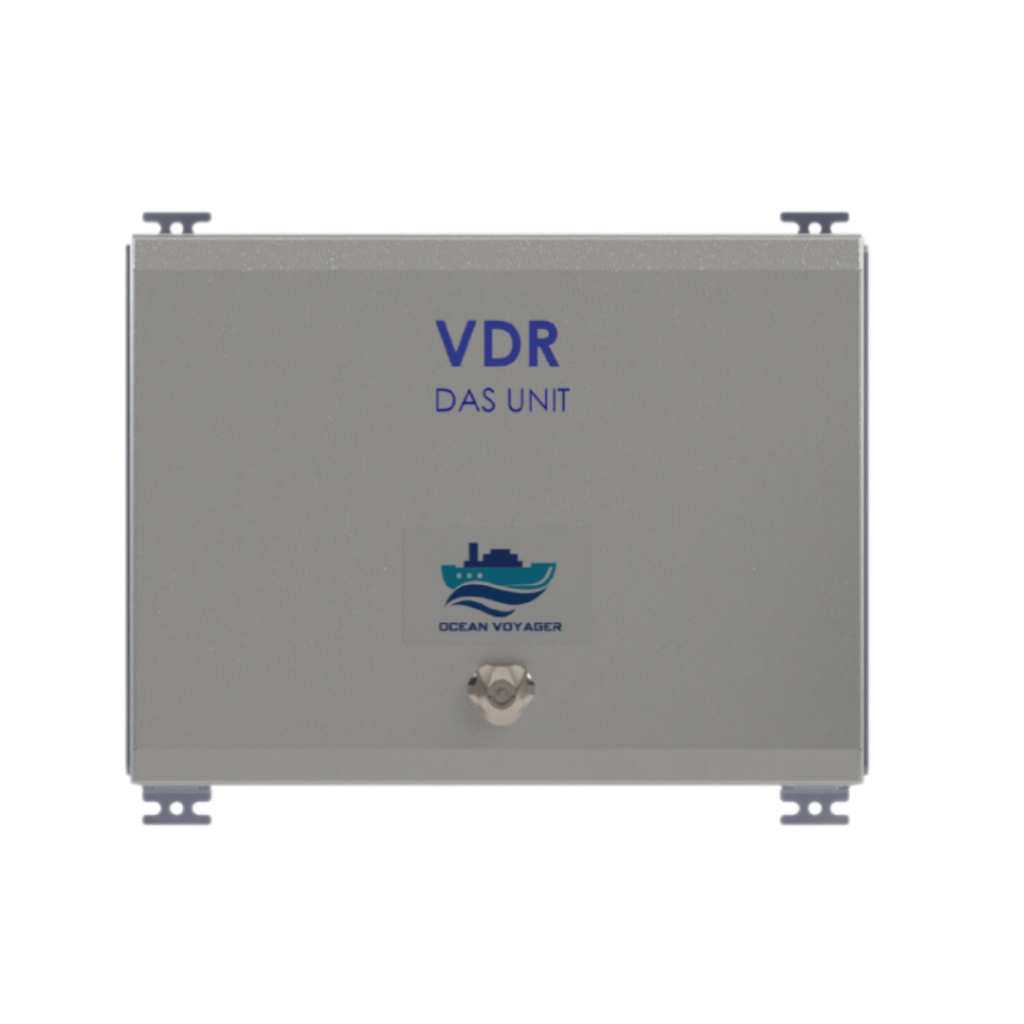

| DAS Module | DC 24V, Supply From DAU |
