- Download data up to 30 days in Data Acquisition Unit
- Image recording of up to 2 Channels Radar / ECDIS
- Recording of AIS, GPS, Echo Sounder, Gyro and Speed Log NMEA data
- Audio recording up to 6 ch of Bridge Audio
- Audio recording up to 2 ch of VHF Audio
- Live Player software allows for real-time data monitoring as well as data playback with a PC at later time
Remark
DR-100L being a non-mandatory option while others adhere to regulatory requirements

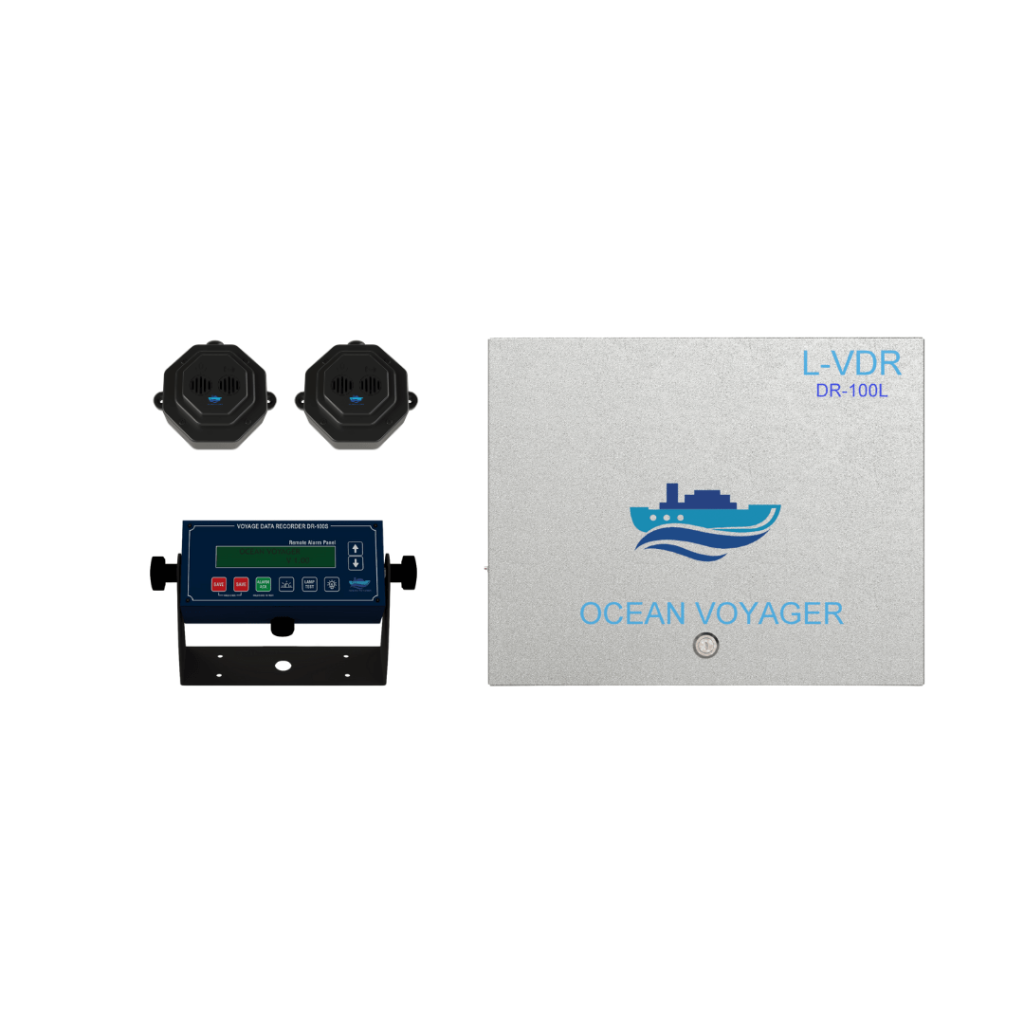

| Name | Light Voyage Data Recorder |
| Recording time | DAU – Up to 50 days |
| EMG. BACKUP DISK – 4 Hours (at once) | |
| Serila Inputs | Up to 6 Channesl |
| Video Inputs | Up to 2 Channel / VGA or UDP |
| LAN | 61162-450 |
| Microphone Audio Input | 6 Channels |
| VHF Audio Input | 2 Channels |

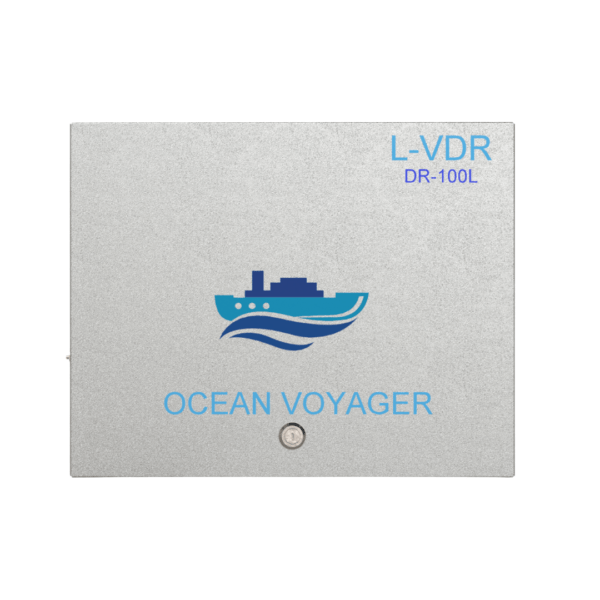

| Data Asquisition Unit | AC-100-240V, 10A, 50/60 Hz |

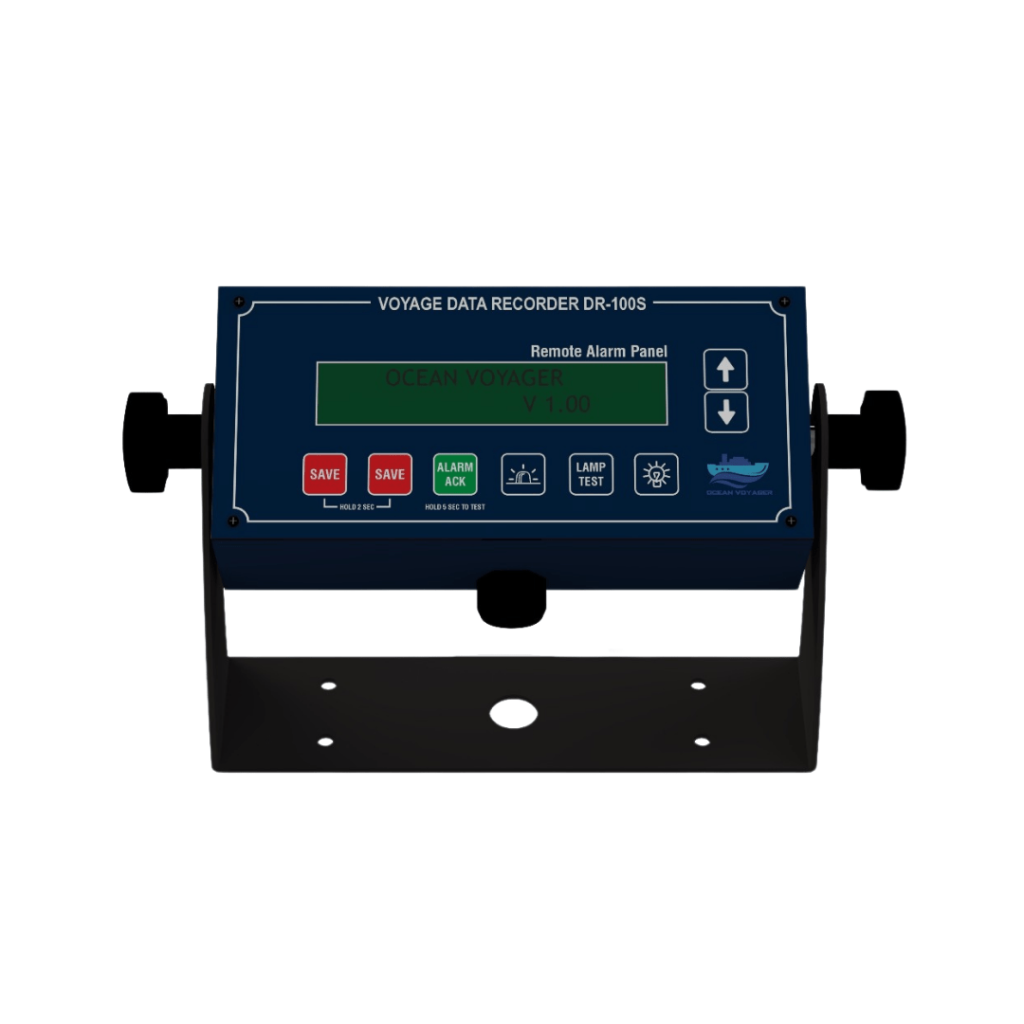

| Remote Alarm Panel / Control Unit | DC 24V, Supply From DAU |

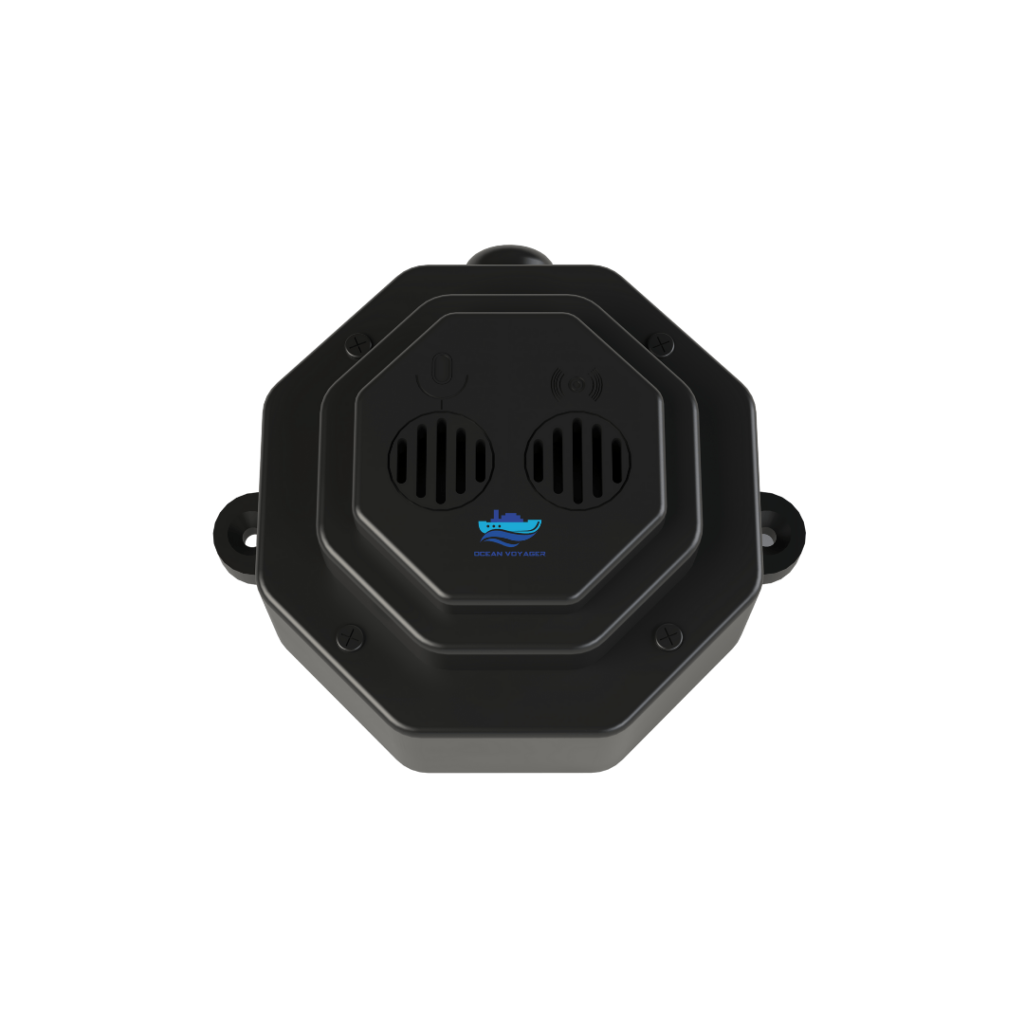

| Microphone Units | DC 24V, Supply From DAU |
| Ship’s Emergency Supply | DC 21.6 – 33.6V, 13.5A, 50/60Hz |
