- Equipped of capsule one type of fixed type and float free type
- Download data for 12 hours in Data Acquisition Unit
- Recording up to 24 hours data in both capsules
- Image recording of up to 2 Channels Radar / ECDIS
- Recording of AIS, GPS, Echo Sounder, Gyro and Speed Log NMEA data
- Audio recording up to 6 ch of Bridge Audio
- Audio recording up to 2 ch of VHF Audio
- Live Player software allows for real-time data monitoring as well as data playback with a PC at later time
Type Approval Requirements
SOLAS 74 REG. V/18, SOLAS 74 REG. X/3 IMO RES. MSC. 36(63) – (1994 HSC CODE) 13 IMO RES. MSC. 97(73) – (2000 HSC CODE) 13
Performance Requirements
2014/90 EU, 2021/1158 EU SOLAS 74 REG. V/20, IMO RES.A.694(17) IMO RES. MSC.36(63)-(1994 HSC Code) 13 IMO RES. MSC.97(73)-(2000) HSC Code) 13 IMO RES. MSC.191(79) IMO RES. MSC.302(87), IMO RES. MSC.333(90)
Standarts
EN 60945:2002, EN 61162-1:2016
EN 61162-2:1998,n EN 61162-450: 2018
EN 61196-2:2008, EN 62288: 2014, EN IEC 62923-1:2018
EN IEC 62923-2

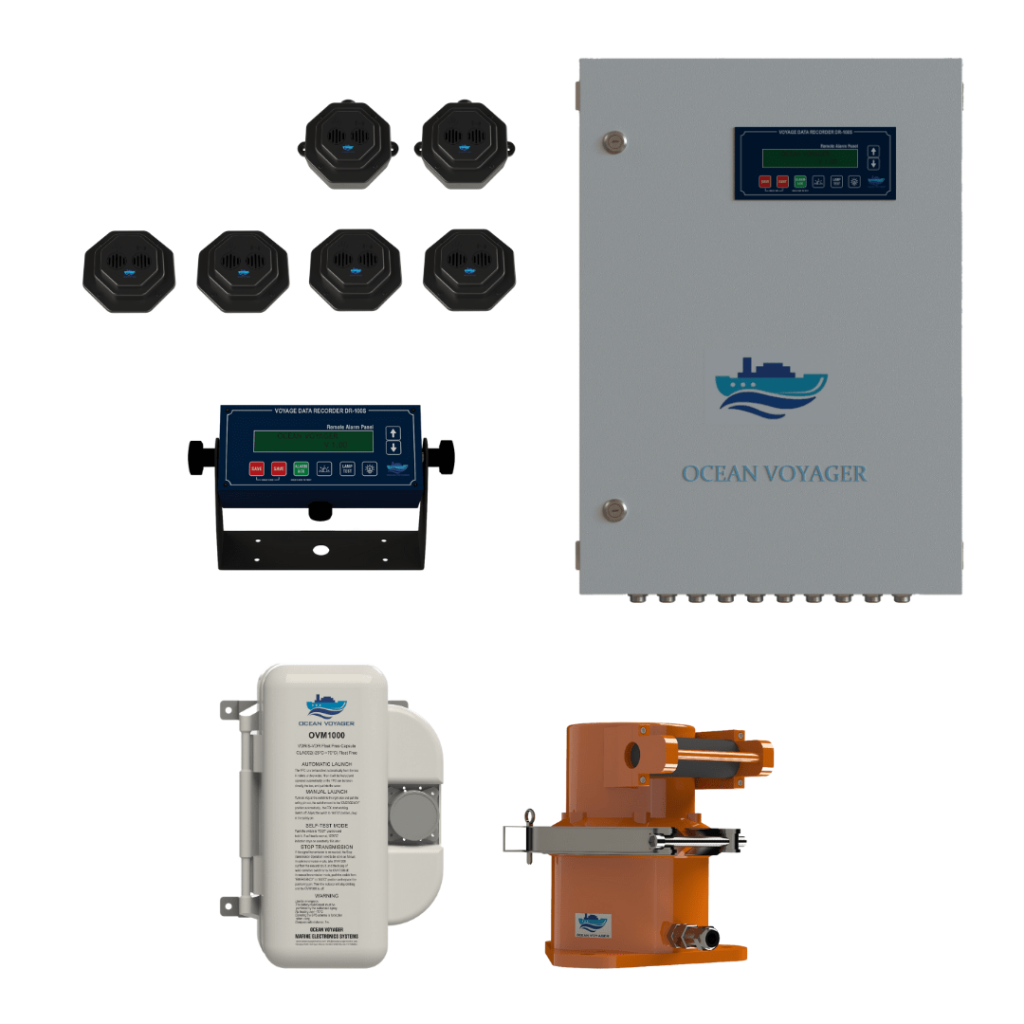

| Name | Simplified Voyage Data Recorder |
| Recording time | DAU – Up to 24 Hours |
| EMG. BACKUP DISK – 4 Hours (at once) | |
| FPC – Up to 12 Hours | |
| FFC – Up to 12 Hours | |
| Serila Inputs | 6 Channel |
| Digital Inputs | n/a |
| Analog Inputs | n/a |
| Video Inputs | Up to 2 Channels /VGA or UDP |
| LAN | 61162-450 |
| Microphone Audio Input | n/a |
| VHF Audio Input | n/a |

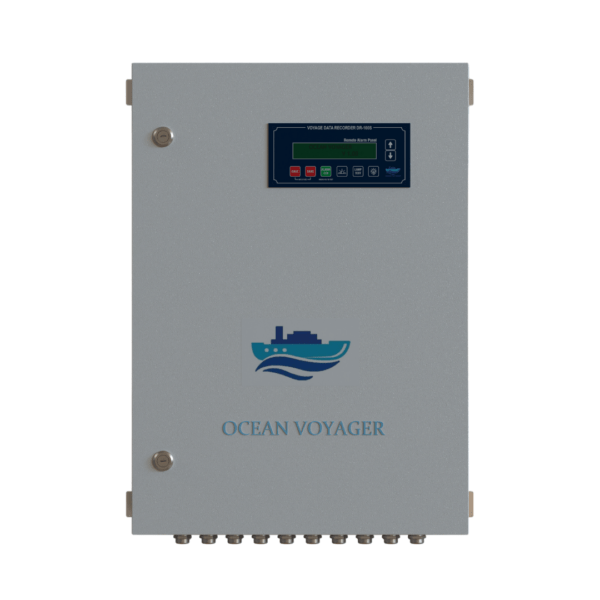

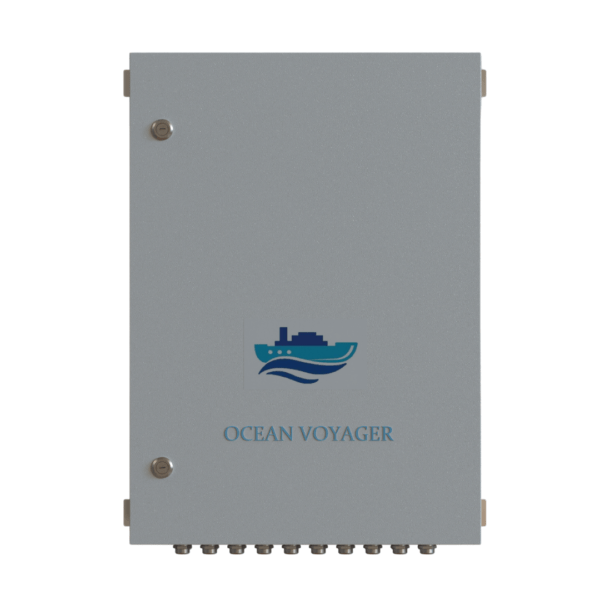

| Data Asquisition Unit | AC-100-240V, 10A, 50/60 Hz |

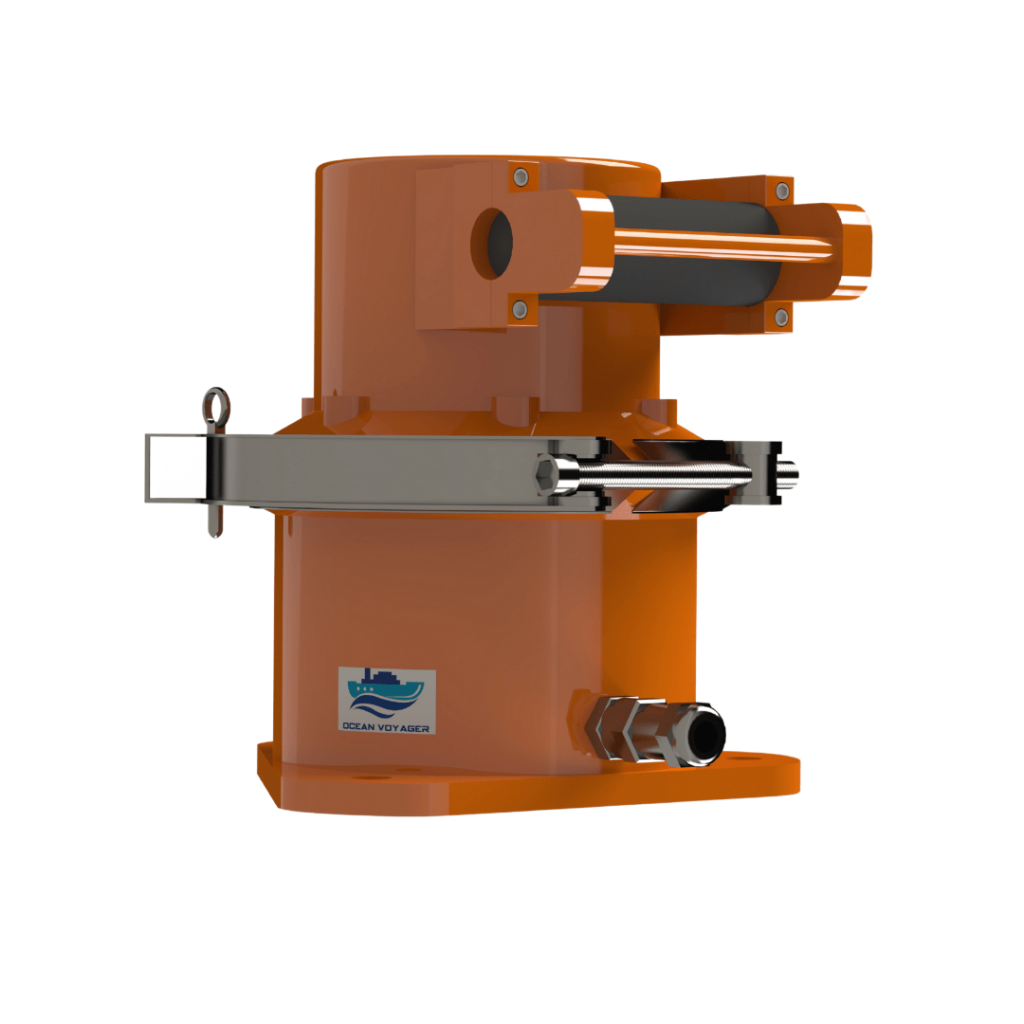

| Fixed Protective Capsule | DC 24V, Supply From DAU |

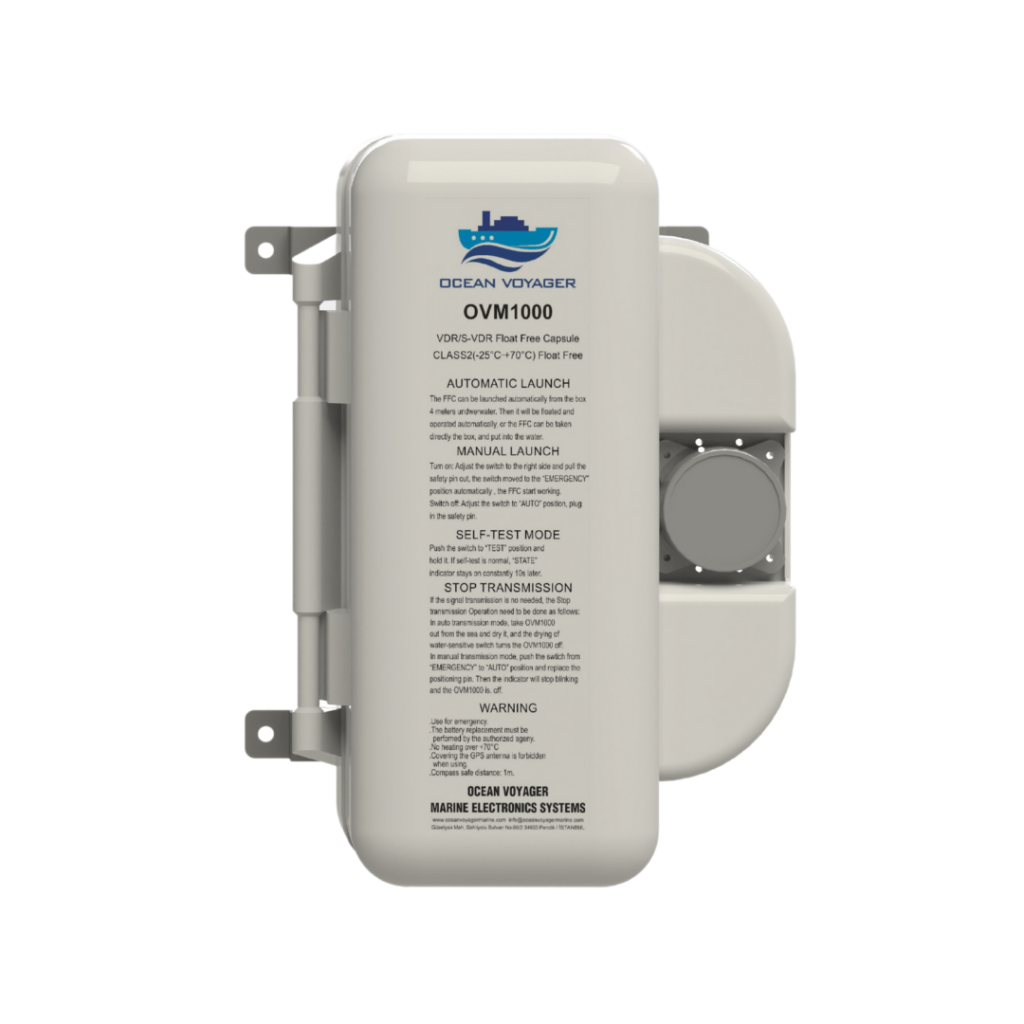

| Float Free Capsule | DC 24V, Supply From DAU |

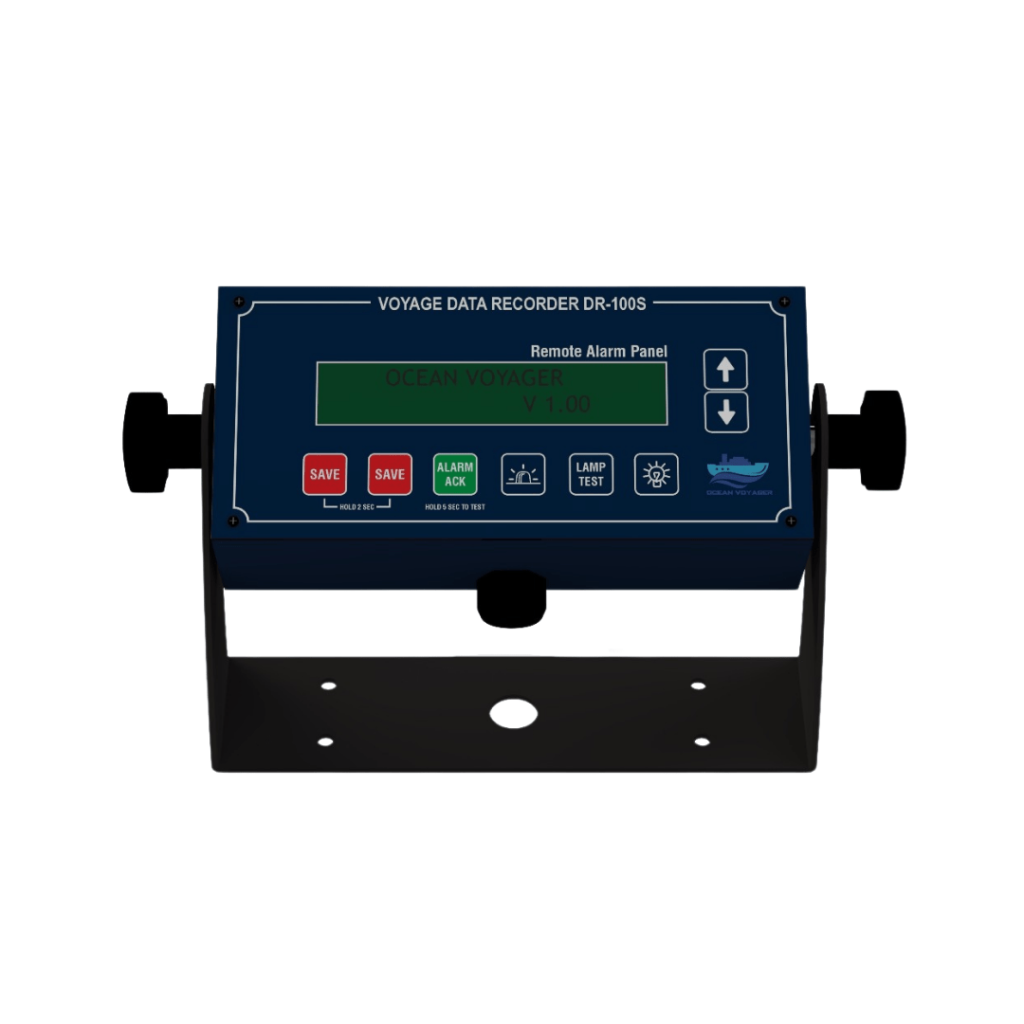

| Remote Alarm Panel / Control Unit | DC 24V, Supply From DAU |

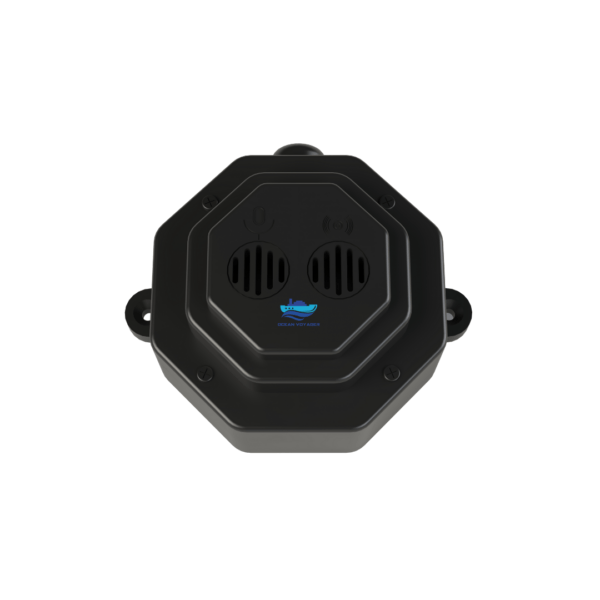

| Microphone Units | DC 24V, Supply From DAU |
| Ship’s Emergency Supply | n/a |
| DAS Module | n/a |
